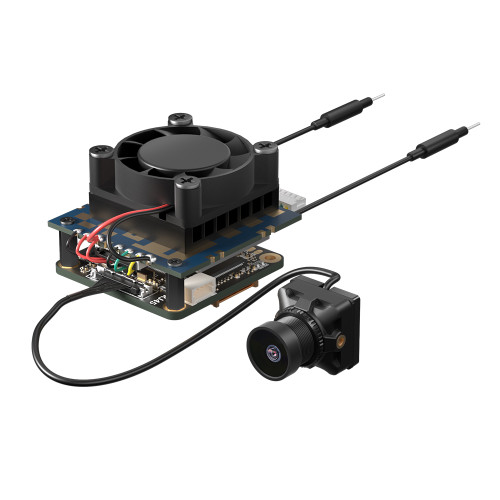

Product Description





Specifications
Model | WiFiLink |
Image Sensor | IMX415 |
Field of view | FOV 160° |
Resolution | 1080P@60FPS 1080P@90FPS 720P@120FPS |
Power range | DC 9-30V (BEC power supply highly recommended. Non-direct power supply from Lipo battery) |
Lens module size | 19*19mm/M12 lens/MIPI cable 200/130mm |
Mounting hole spacing | 25.5mm*25.5mm |
PCB size | 30mm*30mm(338Q) 32mm*32mm(WIFI) |
Weight | 30g |
Antenna | IPEX1(5G) |
PA | 29dBm |
Product Reviews
Write Review
-
Good Experimental board
Posted by Unknown on 17th Oct 2024
I have mixed feeling about the runcam.
It allows you to do a digital FPV at a low cost but it has it's drawbacks.
The hardware feels not designed well. The two standoffs are not sufficient to make two boards secure in event of a crash. There is no way of mounting this thing except for zipties running through the heat sink. There should be really some mounting holes or a plastic enclosure, for those who fly planes and have space for it. The WiFi card and the other board could be connected in a nicer way, withour loose wires hanging out. The fan is very noisy. The device gets super hot.
With that said, I'm happy the device exists and it works, it just needs more development.
