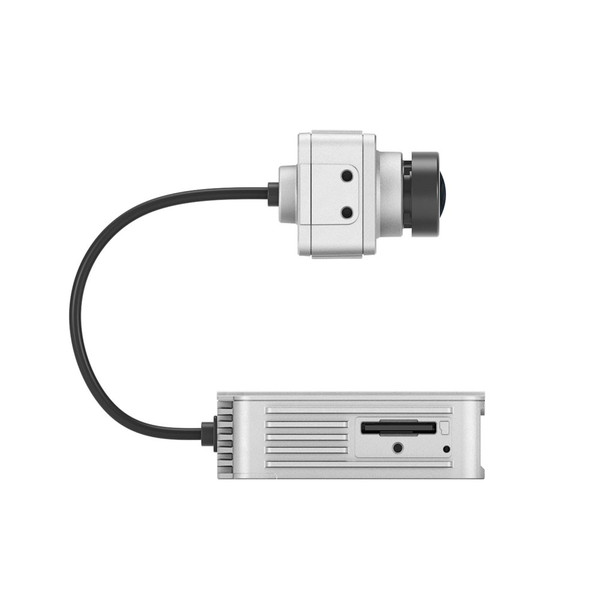

FPV through the DJI Digital HD Air Unit is the way FPV is meant to be. This 5.8Ghz air unit (FPV camera + VTX) provides amazing visual clarity that is able to be transmitted to your DJI Goggles through its built-in receiver module. The DJI FPV Air Unit provides ultra-low latency HD digital image transmission, built-in 1080p/60fps DVR recording, and eight frequency channels to allow up to eight pilots to fly simultaneously.
Digital HD systems have traditionally been rather bulky and unwieldy to mount on a mini quad. Not anymore. With this air unit, you can comfortably fit the module in your mini quad stack (probably not slammed frames). The 'mini' camera fits easily into your existing builds, no weird mounting adapters.
Note: The air unit module does get very hot in use. Do not power on for an extended period of time without proper cooling (AKA flying).
Note: This air unit requires the DJI Digital HD FPV Goggles in order to work. However, using the DJI FPV Remote Controller is optional. The DJI Remote Controller is useful if you want to use their built-in Tx system.
The air unit may become hot during or after operation.
DO NOT touch the air unit before it cools down.
DO NOT use the air unit for an extended period when there is no external cooling equipment. Otherwise, the air unit may overheat and enter overheat protection mode.
Keep the antennas of the air unit at least 40 mm apart.
Keep the air unit away from metal objects or carbon fiber frames. Make sure to choose a position where the transmission will not be blocked during flight.
In The Box
DJI FPV Air Unit (with camera and four M2 screws) × 1
Three-in-one cable × 1
Antenna (MMCX elbow) × 2
Air Unit (Camera included): 45.8 g
3.9 g (MMCX elbow each)
Air Unit: 44 × 37.8 × 14.4 mm
Camera: 27.4 × 21.1 × 20.1 mm
Coaxial Cable: 100 mm
Operating Frequency: 5.725-5.850 GHz
Transmitter Power (EIRP): FCC/SRRC:
Min. Latency (end-to-end)
Low Latency Mode (720p/120fps): High-Quality Mode (720p/60fps):
Max. Transmission Distance: FCC/SRRC: Video Format: MP4 (Video format: H.264; Audio format: ACC-LC)
I/O Interface: USB-C, MMCX, 3-in-1 port, microSD card slot
Operating Temperature Range: 32° to 104°F (0° to 40°C)
Input Power: 7.4-17.6 V, about 4-9 W
Sensor: 1/3.2'' CMOS; Effective Pixels: 4 M
Lens: 2.1 mm, f/2.1
Shutter: Rolling shutter
FOV: 150°(D); 122°(H); 93°(V)
Dimension: 22.1 × 21.1 × 20.1 mm
Weight: 8.2 g
Channel 1: 5660
Channel 2: 5695
Channel 3: 5735
Channel 4: 5770
Channel 5: 5805
Channel 6: 5878
Channel 7: 5914
Channel 8: 5839
DJI FPV Goggles
DJI FPV Remote Controller
