RunCam Micro Swift

Free shipping

Product Description

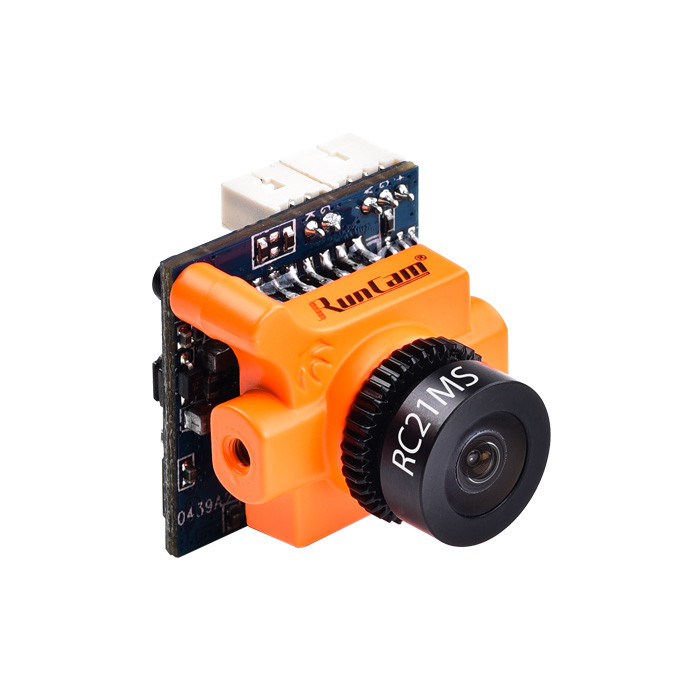

RunCam Micro Swift The world's smallest and lightest CCD FPV camera
Model RunCam Mi​cro Swift
Image Sensor 1/3" SONY Super HAD II CCD
Horizontal Resolution 600TVL
Lens 2.1mm​ Lens(M8)​ ​ FOV160° / 2.3mm​ Lens(M8)​ ​ FOV145°
Signal System PAL / NTSC
S/N Ratio >60dB(AGC OFF)
Electronic Shutter Speed PAL:1/50 ~ 100,000; NTSC:1/60 ~ 100,000
AutoGain Control(AGC) YES
Back light compensation(BLC) YES
Min.illumination 0.01Lux/1.2F
Day/Night Color / Auto / B&W
Power DC 5 to 36V
Net weight ​5.​6g
Dimensions 19mm * 19mm * 19mm
  • 1 X Camera
  • 1 X Bracket
  • 1 X 1.25mm 3pin to 1.25mm 3pin FPV silicone cable
  • 1 X 1.25mm 3pin to 1.0mm 3pin FPV silicone cable
User Manual
User Manual

Product Reviews

Write Review

  1. the best micro cam 5 Star Review

    Posted by on 8th Jul 2018

    i use this cam for my own builds, ultra light 3" racer, the MR139 KAIDJU,
    i use the 2.1 version, for a larger fov, i tried it on my 5" racers too, this is perfect
    one my micro swift race review:

  2. Awesome FPV cam 4 Star Review

    Posted by on 25th Sep 2017

    Worthy replacement of pretty much any analogue 4:3 cam. Smaller lighter and provides the same quality.
    I hope V1 it is still being made, my OSD enabled rigs do not benefit from v2s osd. I actually have to switch it off.
    Ring is the only attention point, its a bit too weak. Maybe RUncam will get surprised we fly them 5s into walls but they seem to be as good as swift2s so why not :)

  3. Great image in such a small camera 5 Star Review

    Posted by on 13th Aug 2017

    I Bodde ARF quad 130 mm. The camera that came with it would always come out of focus in the vibrations from the quad caused theimage Jell-O. It was so bad I could fly the quad. So I Upgraded to The micro and in the image is so much better no more Jell-O and now I love find the quad

  4. The best Racing Camera 5 Star Review

    Posted by on 3rd Aug 2017

    Great picture and ultra light, this is now my favorite camera.
    Take a look at my last race:

  5. runcam 5 Star Review

    Posted by on 19th Jul 2017

    Great product shame about the lenses on first batch
    . Really light weight great for tight builds and excellent picture quality
    And thanks Clair so helpful

  6. runcam mini 5 Star Review

    Posted by on 14th Jul 2017

    This is a great little camera,I have it on a small drone and it is so light .The picture quality is excellent.

  7. one I ordered was bad 4 Star Review

    Posted by on 5th Jul 2017

    When I received the unit I ordered I connected it up only to find out it was in black and white and rolled vertically making it impossible to use. I had to send runcam a pic to prove the defect.
    A little slow to send the the replacement but it worked OK.
    I was surprised at the graininess for a Sony superhad II chip.
    maybe it is due to the processor. It is small for sure

  8. CAM 4 Star Review

    Posted by on 1st Jul 2017

    Works a treat in all light conditions. the only negative issue is the tiny screw to connect the camera to bracket are tiny but overall a very good cam. and well worth the money. Plus I have slammed my quad into trees so many times with this cam on and it still works fine

  9. excellent picture and resolution 5 Star Review

    Posted by on 21st Jun 2017

    Great picture and the resolution is good, though the overall picture looks darker in contrast otherwise an excellent product!!!

  10. Best camera for micro quads 5 Star Review

    Posted by on 16th Jun 2017

    Simply the best camera for micro quads.

  11. Awesome 5 Star Review

    Posted by on 15th Jun 2017

    What an awesome little fpv camera, great light handling, I can fpv my small 2S planes now with same performance as my bigger ones on 3S! See video here for the test:

  12. a great camera in a tiny package 5 Star Review

    Posted by on 15th Jun 2017

    I fly really tight packages, and for a long time the only thing available was tiny cmos cameras with extremely bad image and completely unreliable when it came to light changes.
    When i saw that runcam was coming out with a CCD Camera the size of a stamp, i thought "well lets try it, cant be worse than the others"
    I pre-ordered the camera, waited patiently and finally received it.
    It was really small and to be honest i thought it would not fit in my custom made 130 gnat. I made a mount, got it in the frame and powered it.
    Let me tell you this camera is something else, best video quality i have seen in a long time, adapts very well to light changes and made my tiny quad a different beast to fly with.
    I will be buying more of those, not only because of the quality, but also because of the price and i will be removing my tired old cameras from my quads and replace them with this one.
    Thank you runcam, i am one happy customer!

  13. This camera is the best 5 Star Review

    Posted by on 15th Jun 2017

    .Hello everyone,
    The solution ! It was runcam who found it. Small, light, and irreproachable video quality. This camera is the only one of this category today and I advise all.

  14. love the form factor! 5 Star Review

    Posted by on 15th Jun 2017

    I have been running the micro swift cams in all my rigs and they have been awesome. I really like the size, weight and of course it's performance. Perfect for not only your 3" builds but for all your FPV racing quad sizes. Great job RunCam.

  15. awesome product 5 Star Review

    Posted by on 15th Jun 2017

    I am really satisfied of the camera. It was well packaged and easy to setup. Everything worked flawlessly.

  16. Love the little camera on my micro quad 5 Star Review

    Posted by on 15th Jun 2017

    It is the best solution for a micro quad. I can fly any time thru the day and see great. Low light at night works great I can fly until the sun sets. Very happy with the camera I plan to buy 2 more.

  17. My new go to fpv camera 5 Star Review

    Posted by on 12th Jun 2017

    Other than the occasional build that needs the OSD of the swift 2 I really can't find a reason to use anything else anymore. I've got one on a 5" and a 3". This is what I was hopping the mini was going to be.
