RunCam SKY 2024
Related Products
-
RunCam Atom US$19.99 -
-
PCBs for RunCam 2 / RunCam 2 4K US$44.99 -
RunCam HD 2024 US$49.99
Product Description

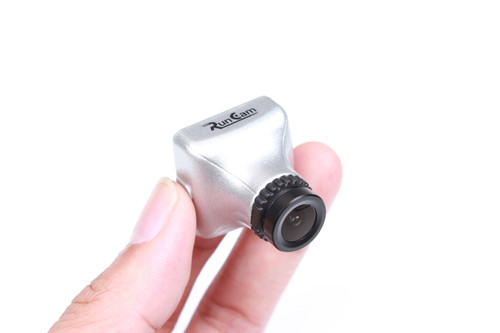

RunCam 650TVL Mini Metal Casing FPV camera
SKY
A new released aluminum Mini Camera dedicates to FPV players. With the improvement of picture quality, the size and anti-dazzling function are highly optimized elaborately for FPV use.
Housing
Only 18g
Clearer
Sony CCD
650TVL
CVBS
5D-OSD
IR filter
More Colorful
It adopts SONY CCD &Nextchip 2090 DSP, SamSung and PANASONIC's top resistor component and tantalum capacitor.
Elaborate optimization program, it is specialized in dealing with strong light and has more vivid image show than other FPV cameras.
26*26mm Mini size and arc-shaped edge helps it largely reduce the wind drag and stable the model ship airplane. With these features, Sky is suitable for various type of plane.
New aluminum design case makes the camera lighter and more exquisite.
Weight only 18.2g with case.
The small size and lighter weight make SKY more flexible to model planes or drones in various size.
The comparision between the OSD display of SKY and PZ0420(H)
Please note: The current version of RunCam SKY is not completely compatible with MAX7456 chip OSD ( Blurred OSD display or flickering)
Different Lens Size for Selection!
Like to have different viewing angles and distances? There are 2.8mm and 3.6mm (default one) for your optional!
FPV wiring diagram and recommended equipment
We recommend:
- 1. DC 9-12V power source
- 2. 32CH 5.8G 600mW FPV Wireless Transmitter and Receiver Kit
- 3. 5.8G SMA& RP-SMA Circular Polarized Antenna
| Image Sensor | 1/3 SONY SUPER HAD II CCD |
| Horizontal Resolution | 650TVL |
| Effective Pixel | PAL:753(H) x 582(V), NTSC:768(H) x 494(V) |
| Signal System | PAL/NTSC |
| Synchronization | Internal |
| Auto White Balance | Manual/Auto/Auto tracking |
| S/N Ratio | >60dB(AGC OFF) |
| Electronic Shutter Speed | PAL:1/50-1/100,000sec; NTSC:1/60-1/100, 000 |
| Auto Gain Control | off/low/mid/high optional |
| Back light compensation (BLC) | off /BLC/ anti-exposure |
| Motion Detection (MD) | On/Off (multi-level sensitivity) |
| Min. Illumination | 0.01Lux/1.2F |
| Shading Area | 8 |
| Video Output | 1.0Vp-p 75 ohm BNC output |
| Power | 9-12V DC |
| Negative/ positive | Negative/ positive optional |
| Edge light compensation | Yes |
| Display Mode | LED monitor/ CRT monitor |
| Synchronize IR turn on and color turn to B&W | Yes (optional) |
| IR image optimize | Anti exposure of the object in the middle |
| DNR | 2DNR |
| Day/ Night Switch | Auto/Color/B&W/Outside control (position start and end controllable) |
| Day/ Night time switch | 1 to 30 Switchable time |
| OSD | English/ Chinese/ Japanese/ German/ French/ Russian/ Portuguese/ Spanish |
| White dot repair (DPC) | Yes |
| Image adjust | Yes |
| Function Control | OSD |
| Dimensions | 26mm x 26mm |
| Operation Temp. | –10C to +50C |
| Operation Environ. | 10% to 90% |
Package
- 1 X Camera
- 1 X Cable
- 1 X FPV Cable
- 1 X Metal holder
- 1 X Manual
Tips:
- The camera is adapted with the sense infrared filter.
Download:
User Manual
