RunCam Hybrid

US$99.99
SKU:
HYBRID
Weight:
18.00 Grams
Shipping:
Free shipping
Quantity:

Product Description

RunCam Hybrid
True 145° Wide Angle 4K HD & FPV Camera
HD FOV 145° Racing Level FPV Latency Single Board Design
RunCam Hybrid
FOV 145° HD recording.
Customized high-quality 7 layers of glass lens +
SONY sensor, wider FOV, better image quality.

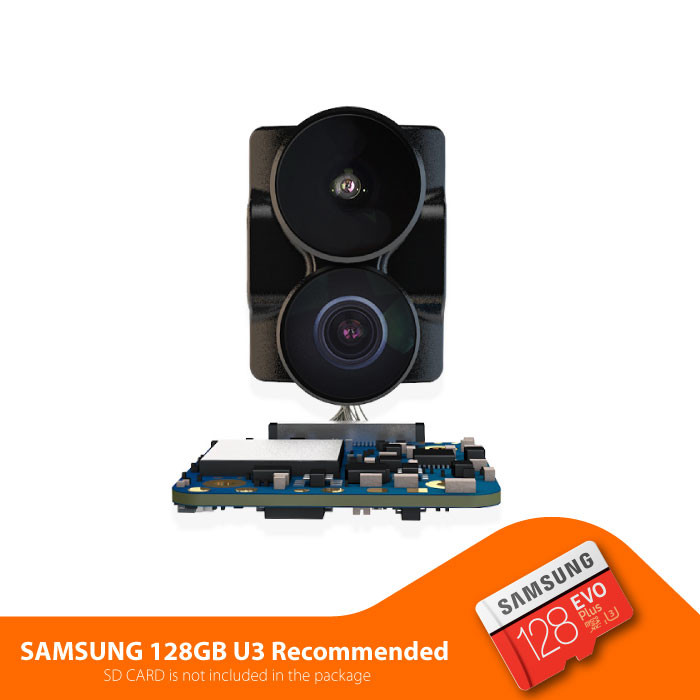

RunCam Hybrid
Single board, simple installation.
  • 20x20mm mounting sized single mainboard.
  • Save more stack space.
  • Compatible with more frames.
Racing-level 6ms FPV latency.
The truth is, the inner FPV camera is a well-known professional racing camera - the RunCam Racer.
The latency is unbelievable 6ms. And of course, the FPV image quality is also top level.
Remote-control HD recording.
After connecting Tx & Rx to the flight controller,
you can easily start/stop recording by gently toggling the switch.
QR code parameter settings.
You can change resolution, shutter speed,
ISO and so on through the RunCam App.
Upgradeable inner FPV camera.
-What? An FPV camera can do firmware upgrading?
-Yes, it's true, you can do that through the SpeedyBee App.

Appreciate Gal Kremer for showing us how to update the FPV camera firmware in details.

Dimensions

Package

  • RunCam Hybrid
    1x Camera
  • RunCam Hybrid
    1x Plastic cover
  • RunCam Hybrid
    1x 3PIN FPV silicone cable(male)
  • RunCam Hybrid
    1x 3PIN FPV silicone cable(female)
  • RunCam Hybrid
    1x Set of M2 screws
  • RunCam Hybrid
    Manual*1


Parameters

HD sensor SONY 8MP
Analog sensor SONY 1.3MP
Field of View (FOV) HD Recording FOV 145°(FPV FOV 150° @ 4: 3)
Video Resolution 4K@30fps / 2.7K@60fps / 2.7K@50fps / 1080P@120fps / 1080P@100fps / 1080P@60fps / 1080P@50fps
Video File Format MP4
TV Mode NTSC (720*480)/PAL (720*576) Switchable
Interface HD supports UART remote control; FPV(Analog) supports UART fimrware update.
Max Micro SD Card Supported Up to 128G. U3 recommended (2.7K60/1080P120 requires U3 or above; other solutions require U1 or above) Please make sure that the file format of the SD card is FAT32, otherwise, it will easily cause errors.
Mounting Holes Distance 20*20mm
PCB Size 29*29mm
Lens Module Size 19*25mm
Lens Specs HD Lens : M10 FPV Lens : M8
Power Input DC 5-20V (Non-direct power supply from 4s battery or above. Powered directly with battery will generate surges and burn the camera.)
Working Current 480mA @5V / 140mA @12V
Weight 18g

Product Reviews

Write Review

  1. Finally ! It can be better... 3 Star Review

    Posted by on 9th Nov 2019

    Very good sharp in level one (to much in level 2 or 3), Dynamic range of light too small. To much green saturation. QR code systeme is very good but you can't see if the settings are good.... A 2nd vidéo line ( many FC can switch between 2 cam now like as the MATEK 722mini...) can be the next better way ! All settings in OSD with 2 video lines.
