RunCam Mini FPV DVR

US$16.99
SKU:
RUNCAM-DVR
Weight:
3.50 Grams
Shipping:
Free shipping
Quantity:

Product Description

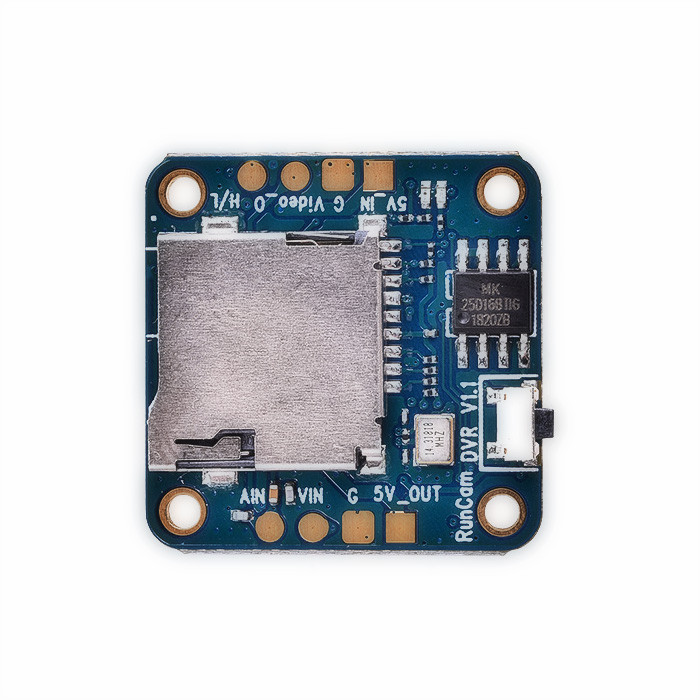

RunCam Mini FPV DVR

RunCam Mini FPV DVR

Designed for Mini FPV Racing Drone 25*25mm @ 20*20mm M2 holes

Lossless video output

RunCam Mini FPV DVR

Remote Control Version

Using the Speedy Bee App to set the Remote control function, you can start/stop recording through the remote control. For example, you can bind the recording function to the ARM mode, and the DVR will start recording when the ARM mode is activated. Otherwise, the DVR will stop recording.

Method 1. Automatic association (App iOS >= 1.0.8, Android >= 1.0.7)
RunCam Mini FPV DVR
  • Select your Flight Controller and RunCam DVR-S.
  • Select the Associate pin, and then connect the PIN you selected to the H/L pad of the RunCam DVR-S.
  • Select Associate mode, we can choose any mode. For example, if you want to start recording after the drone is arming, stop recording after disarming, you can select ARM mode.
  • Associate action, when the assocated mode is actived, RunCam DVR-S will perform this action. In general, this setting does not need to be changed.
  • Click Bind and Reboot.

Method 2. Manual association

Open the App (iOS >= 1.0.8, Android >= 1.0.7)=> select the Help Center=>click RunCam DVR-S => select Telemerty Control

  • Select your Flight Controller and RunCam DVR-S.
  • Select the Associate pin, and then connect the PIN you selected to the H/L pad of the RunCam DVR-S.
  • Select Associate mode, we can choose any mode. For example, if you want to start recording after the drone is arming, stop recording after disarming, you can select ARM mode.
  • Associate action, when the assocated mode is actived´╝îRunCam DVR-S will perform this action. In general, this setting does not need to be changed.
  • Click Generate CLI Commands.
RunCam Mini FPV DVR

RunCam Mini FPV DVR
  • Copy the commands and enter the commands on the CLI interface of ground station.


Package

  • RunCam Mini FPV DVR

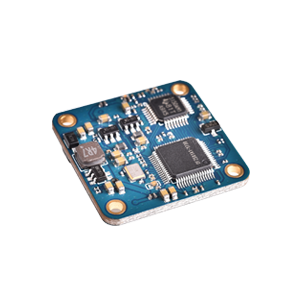

    1x DVR
  • RunCam Mini FPV DVR

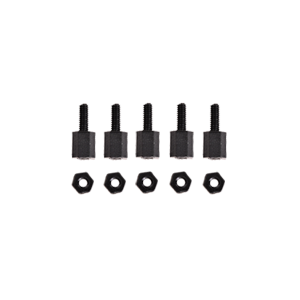

    1x Set of M2 screws
  • RunCam Mini FPV DVR

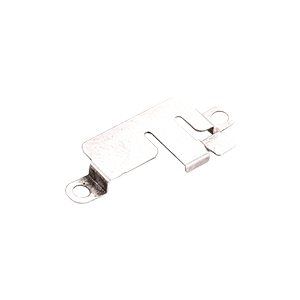

    1x SD card protector
  • RunCam Mini FPV DVR

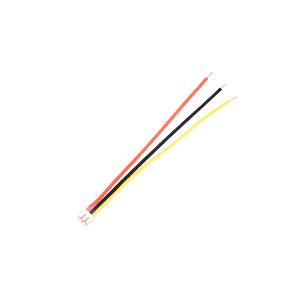

    1x 3pin FPV Silicone Cable(Male)
  • RunCam Mini FPV DVR

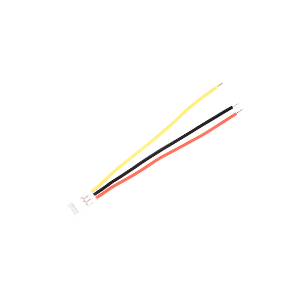

    1x 3pin FPV Silicone Cable(Female)
  • RunCam Mini FPV DVR
    1x Manual
Parameters
Model RunCam FPV DVR
Power in DC 3.3-5.5V
Work Current 250mA Max
Power out DC 5V @ Max 250mA
Video in CVBS@1Vp-p 75Ω
Video out CVBS@1Vp-p 75Ω
Encoder MJPEG@AVI
Resolution VGA(640 x 480) @ 30fps(NTSC)/25fps(PAL)
Audio in MIC
Micro SD Card Max 32G
Dimension 25 x 25mm @20 × 20 M2 holes
Net Weight 3.5g
