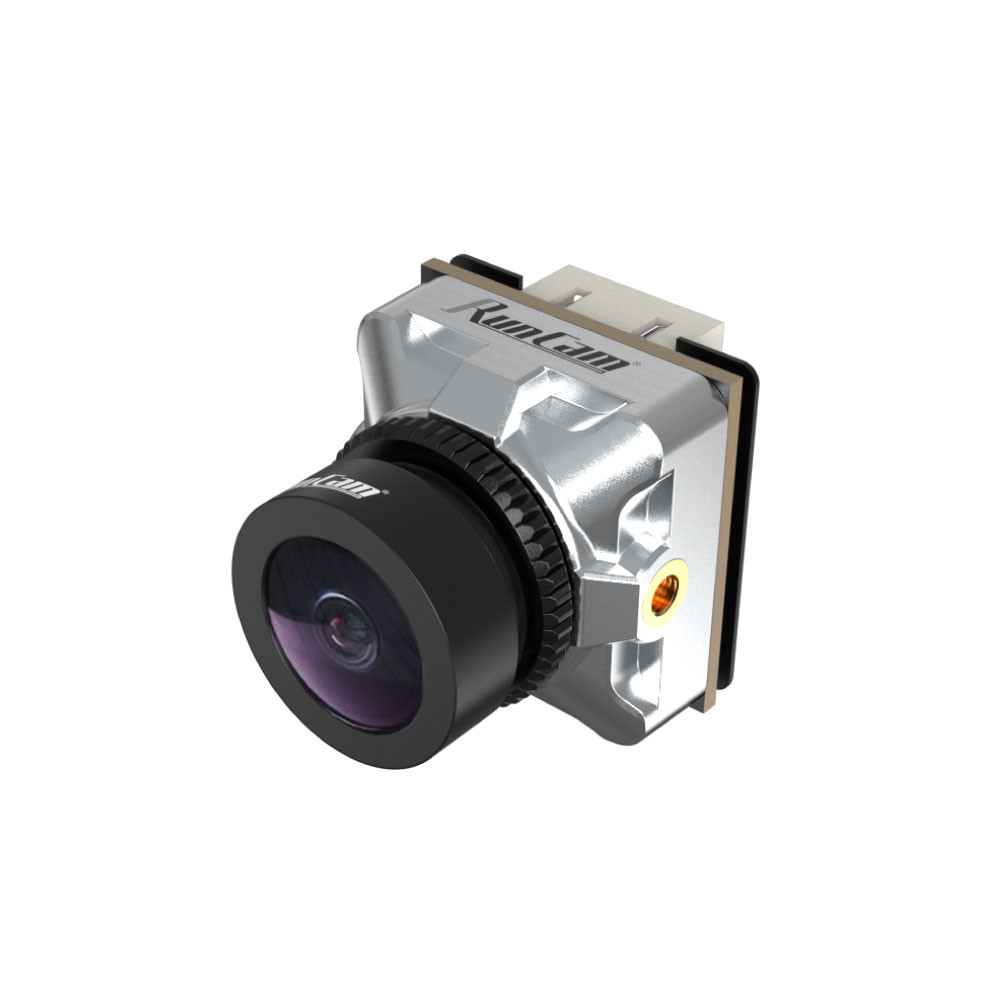

| Product Name | RunCam Phoenix 2 | ||
| Image Sensor | 1/2" CMOS Sensor | ||
| Horizontal Resolution | 1000TVL | ||
| Lens | 2.1mm (M12) FOV155° (4:3) | ||
| Screen Format | 4:3 / 16:9 switchable | ||
| Mirror/Flip | Available | ||
| Signal System | PAL / NTSC Switchable | ||
| S/N Ratio | >50dB (AGC OFF) | ||
| Electronic Shutter Speed | Auto | ||
| Auto Gain Control (AGC) | Auto | ||
| Min. Illumination | 0.001Lux@1.2F | ||
| WDR | Global WDR | ||
| Day/Night | Color/BW/EXT/Auto | ||
| Menu Control | Cable Control | ||
| Power | DC 5-36V | ||
| Current |
|
||
| Housing Material | ABS | ||
| Net Weight | 9g | ||
| Dimensions | 19mm*19mm*19mm |
Manual
Posted by hamid nazer on 5th Jul 2021
this is a nice good quality camera. currently installed in my dart xl v2. i am statisfied with the color and light handling of this camera.
Posted by Victor on 18th Jun 2021
Lens came a bit unfocused but otherwise the best cam i have tryed. I think its better then swift 2
Posted by Nils H. on 26th May 2021
As an FPV beginner I haven't been throgh a whole lot of different FPV cameras, but I can say that I am very satisfied with this one. The image is pretty nice considering it's an analog video system and can be adjusted to anyone's needs with the separately available control board. I crashed several times (some times harder than others) but the camera didn't even care at all.
For that little cost you get a very nice looking image and durable camera. Highly recommended!
Posted by Jokke on 5th Oct 2020
Colors are natural looking and very good clear picture.
The cam is the best i have tried period. I can highly recommend!
Posted by SAJIDAH ALHABEEB on 11th Sep 2020
the best camera for my use was runcam swift 2 but now the best is the RunCam Phoenix 2..
this camera in low light condition will surprise you
Posted by Zak on 16th Aug 2020
Great job on price vs performance, Runcam! I have installed these cameras in two quads and two planes, and they look awesome whether on older goggles or the HDO/HDO2. Colours and details pop, but remain more natural than other (more expensive) options. I think these will be my final analogue FPV camera. I hope you are developing your own DJI digital compatible one!
Posted by Reidar Otto Johnsen on 14th Aug 2020
A very good camera.
Highly recommended!
Posted by David Falkjar on 4th Jul 2020
The cameras arrived exactly has expected. Theses are great cameras. Excellent service from the sales team and quick delivery!
Posted by =SUBROSA= on 28th Mar 2020
I have crashed just as hard with Micro Eagle V2's that didnt survive like the Pheonix 2 has...Recently had a bad crash to concrete from about 80ft, shattered my Unify pro race VTX, cracked my FC, and ripped the screws from the sensor board out of the lens mount in the Pheonix 2 (frame is plastic) BUT I glued it back to gether and it still works! I cant say that about my dead perfectly connected Micro Eagle...The image is nicer by a good margin and is noticeable in FS HDO2, but not such a difference with older LCD goggles. using HDO2 and Pheonix 2 is closer to HD than you might realize. you can see scraggle better than with other cameras, and have the same low light capability as Micro Eagle...and the Lens mount is the same if you want a Micro Eagle lens, because the sensor is the same size. for the Image Quality this little FPV camera is a great price over the Micro Eagle as well, nearly half price...which is always welcome!
Posted by ksa_maxx on 23rd Mar 2020
its great I like it more than my favorite runcam camera swift 2
Posted by Unknown on 18th Mar 2020
Winter here at my location ,I've been unable to thoroughly test products because of weather.Hope to get out soon.So far very happy with most of my many Runcam Products.
Posted by Michael L Massar on 15th Mar 2020
I got one of these to replace my RunCam Eagle Micro, I did not care for the times the eagle would go white out on quck flips it would bug me. That being said it was not a bad camera, But the Run Cam Phoenix 2 is the best camera I have run out of all my camera. Very detailed and true colers with hardly no changing in the settings. Truely a very nice camera for FPV no doubt.
