RunCam PZ0420M

€29.48 €22.82
(You save €6.66)
SKU:
PZ0420M-L28
Shipping:
Free shipping
Quantity:

Product Description

RunCam 600TVL DC 5-17V Wide Voltage Mini FPV Camera

PZ0420M

This is an optimized version of PZ0420. It still keeps 600TVL resolution and excellent color rendition, supporting 5 to 17V operating voltage. The board size is reduced to 28*28mm, which can reduce air resistance for FPV aircraft. Besides,the weight of camera is just 18g (with case SKYPLUS), 12g (PZ0420M-L28),9g (PZ0420M-L24). It is suitable for fixed-wing aircraft and Multirotor like QAV250, which are highly required in voltage and weight.

  • 12g

  • Clearer

  • Sony CCD

  • 600TVL

  • CVBS

  • 5D-OSD

  • IR filter



More Colorful

It t adopts SONY CCD &Nextchip DSP, SamSung and PANASONIC's top resistor component and tantalum capacitor.

RunCam, 600TVL, Plastic Housing, FPV Camera

Mini Size

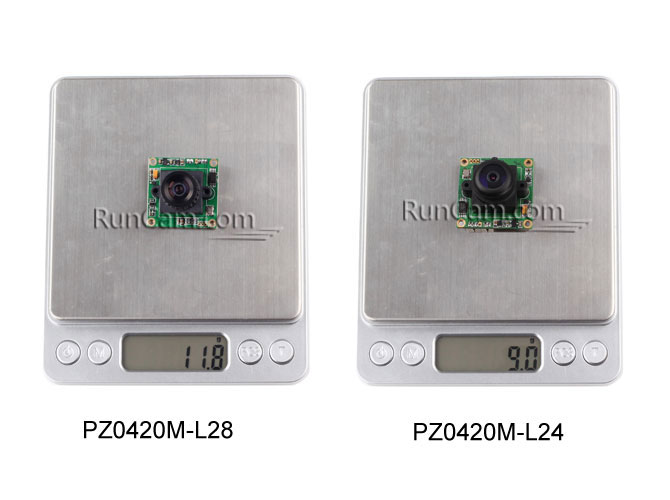

Lighter, Net Weight is ONLY 12g (PZ0420M-L28), 9g (PZ0420-L24)

The small size and lighter weight make the camera more flexible to model planes or drones in ​​various size.

RunCam, 600TVL, Plastic Housing, FPV Camera

 Wide Angle lens

Immersive Feeling

IR sensitive or IR blocked version for option (Video effect take IR sensitive PZ0420 and IR blocked CMQ1993X for reference.)

5D-OSD

The newly designed 5D-OSD button makes the control easier than OSD board!

3pin FPV cable

The 400mm-long split 3pin FPV cable is more flexible for any RC airplane use!

RunCam, 600TVL, Plastic Housing, FPV Camera

Wiring definition and accessories

Wiring definition and accessories

Specifications:

  • Color 600TVL Black & white 650TVL High Picture Quality
  • 1/3'' SONY SUPER HAD II CCD
  • Support 2 to 4S battery (DC 5 to 17V) Wide voltage Power input
  • 2.8mm/2.4mm wide angle lens
  • Removable 5D OSD menu
  • Digital Wide Dynamic Range(D-WDR)
  • Digital Noise Reduction(2 DNR)
  • Low Power Consumption
  • Back light compensation (BLC)
  • MIRROR
  • Anti-exposure function support car license recording(HLC)
  • Low illumination:0.01Lux
  • White dot repair(DPC)
  • CVBS(RCA) Video output
Image Sensor 1/3 SONY SUPER HAD II CCD
Horizontal Resolution 600TVL
Effective Pixel PAL:753(H)*582(V), NTSC:768(H)*494(V)
Signal System PAL/NTSC
Synchronization Internal
Auto White Balance Manual/Auto/Auto tracking
S/N Ratio >60dB(AGC OFF)
Electronic Shutter Speed PAL: 1/50 to 1/100,000sec; NTSC: 1/60 to 1/100,000
Auto Gain Control off/low/mid/high optional
Back light compensation (BLC) off /BLC/ anti-exposure
Motion Detection (MD) On/Off (multi-level sensitivity)
Min. Illumination 0.01Lux/1.2F
Shading Area 8
Video Output 1.0Vp-p 75 ohm RCA output
Power DC 5 to 17V
Negative/ positive Negative/ positive optional
Edge light compensation Yes
Display Mode LED monitor/CRT monitor
Synchronize IR turn on and color turn to B&W Yes (optional)
IR image optimize Anti exposure of the object in the middle
DNR 2DNR
Day/ Night Switch Auto/ Color/ B&W/ Outside control (position start and end controllable)
Day/ Night time switch 1 to 30 Switchable time
OSD Chinese/ English Menu
White dot repair (DPC) Yes
Image adjust Yes
Function Control OSD
Dimensions 28mm * 28mm(PZ0420M)
Operating Voltage 5.0V 12.0V 17.0V
Supply current 170mA 50mA 30mA
Operation Temp. –10C to +50C
Operation Environ. 10% to 90%



Package

  • 1 X Camera
  • 1X OSD Menu Cable
  • 1X FPV Cable
  • 1X Manual

Download

User ManualUser Manual

Other Details

Weight:
0.32 ounces (9 grams )

Product Reviews

Write Review

Showing reviews 1-20 of 24 | Next

  1. capuder.uros@ siol.net 5 Star Review

    Posted by on 12th Mar 2018

    Best fpv camera for so litle money


  2. Great FPV camera 5 Star Review

    Posted by on 3rd Mar 2017

    This is a really great camera for FPV, light weight and small size makes it a good choice for mini quads. These give a nice clear image on my Fatshark HD v2 goggles. They also work well in low light situations like after sunset.

  3. Great small FPV camera 5 Star Review

    Posted by on 25th Oct 2016

    Great small FPV camera

  4. PZ0420M-L28 - Not bad 4 Star Review

    Posted by on 24th May 2016

    I installed this camera on my FPV quad and it works great.
    The resolution it gives in my goggles is great.
    Definitely recommend

  5. Super quality FPV 5 Star Review

    Posted by on 12th May 2016

    It's definitely my best fpv camera. I've bought 5 already for drone racing :) My team used them at World Drone Prix and
    took third place!

  6. My favorite fpv camera 5 Star Review

    Posted by on 15th Apr 2016

    Used on my mini Skywalkers....favorite is the IR cut filter 2.8mm lens (or larger). Best color, detail, with little or no glare.

  7. very good product 5 Star Review

    Posted by on 12th Apr 2016

    i bought this cam because the new runcam sky2 is unavailable everywhere, and i installed it on my 250 racer. amazing picture compared to the stock one....!!
    smaller, lighter, and much brighter....!!!! colors are very nice, and if you are looking the sky with sun, you can continue to see the ground, it s so good...!!

  8. good 5 Star Review

    Posted by on 9th Apr 2016

    good

  9. Total change FPV 5 Star Review

    Posted by on 9th Mar 2016

    Total change in the FPV flight, with extreme changes in light. No longer problems with the shutter.
    fully recommended

  10. Very good fit fir my maltycross 220 race quadcopter 5 Star Review

    Posted by on 24th Jan 2016

    Nice wide angle and very good picture quality.

  11. Super on a ZMR180 5 Star Review

    Posted by on 10th Jan 2016

    Installed this camera with 2.4 lens on a ZMR180 as FPV purpose. Super quality, never regret buying this one by recommendation of a friend. Super easy to mount, precise fit on a small frame like that. Also in difficult light conditions it works really good out of the box without tuning the parameters in the OSD menu (didn't even do that!).

  12. great picture 4 Star Review

    Posted by on 23rd Nov 2015

    The best picture I have seen in fpv. It was hard to mount in a quad. different mounting options for this camera would be great.

  13. Awesome 5 Star Review

    Posted by on 17th Nov 2015

    Great camera!
    Fantastic that it is multi voltage.
    The Low light capabilities are great!
    Couldn't ask for more in an FPV camera.

  14. nice piece of hardware 5 Star Review

    Posted by on 10th Nov 2015

    it came nicely packed, shipping was fast enough (for free shiping), nice costumer care, about the performance: no need to say much, internet is full of videos wich compare this product with other cameras, it just can handle great any light condition, size is very nice, and osd menu with remote is nice option to have. owerlay is great product for its price !!

  15. Best cam I've ever had! 5 Star Review

    Posted by on 3rd Nov 2015

    Compared to other cameras with the same equipment e.g. Fatshark CMOS 600TVL this nice little cam is awesome. OSD function without extra need of external power, great light-low light balance and a great form factor.

    I'm flying the cam on a racequad utilizing the 2.1mm wide lens which give you a great wide view and good colours. Highly recommended!

  16. the standard 4 Star Review

    Posted by on 24th Oct 2015

    The go to camera

  17. Better then board mount 5 Star Review

    Posted by on 8th Oct 2015

    with the shell I can crazy fly, dont need to care abt the crash.

    IR function very fast, nice video quality, nice weight, nice outlook.

  18. Runcam Skyplus 4 Star Review

    Posted by on 6th Oct 2015

    It's great little camera, osd cable doesn't need extra power connection which is great idea as I can adjust directly with vtx on to match with my goggle. Adjustable height camera mount also great.

    The only disadvantage is the case a touch heavy and thicker compare to others but it is acceptable, for 180 like tweaker case might hit the front Standoffs if tilt up very high.

    Light sensing is great no worries even fly toward the sun or going to somewhere very dark, color also appear better than other brands too.

    Strongly recommended

  19. WoW so fast camera! 5 Star Review

    Posted by on 30th Sep 2015

    This camera is one of the fastest I had ever owned. I have just received it, connected to 12.2V power supply and my 47" LCD TV, changed a few settings and tested the response.. Its FAST, lighting FAST. On the box labels SKYPLUS-L28-P (no markings on the case though), it should be IR sensitive PAL version. If its IR sensitive, then color quality is SUBERB! Only thing I have not yet tried is micro minimOSD with KVmod, but internal OSD connected through the cable works great. Maybe I will write another review after my quadcopter is done in several months :)

  20. its like not being afraid of the dark 5 Star Review

    Posted by on 4th Sep 2015

    Tree cover to Sunny sky is no longer impossible. This plug and play is above average.
